Infrared Drive Module Kit <font color=red>(Brand New)</font>



IrDA Infrared Module Kit (IRM-03A)
The IrDA Module Kit is basically the Infrared Drive without the mounting drive frame.  It facilitates inexpensive and easy integration to certain computer cases that already have an IR window openning.



The IrDA Infrared module kit includes
Infrared Module

Optional 3.5" Frame Only
Optional 5.25" Frame Only

 Standard IR Cable

Optional Individually-pinned IR Cable
Optional 4Mb FIR (Fast Infrared) Cable

 2 mounting screws

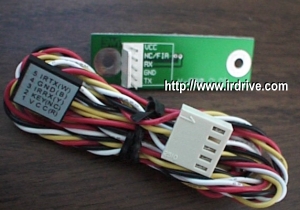

The Infrared Drive module kit includes a 100cm standard IR cable and 2 standard case screws.

A close up picture of the Infrared Drive module unit. The module is easily mounted to a case by attachment of 2 standard case screws.


IR Module Application note #1
Install IR module onto an unused 3.5" drive bay cover.

Drill 2 holes 1 5/8" apart so you can attach the IR module to the drive bay cover given the right use of screws, nuts, and standoffs

Then drill 3 holes to expose the transmitter, receiver, and visual LED bulbs.

click on the picture to enlarge


Attach the included IR Cable to the IR Module.  Then apply the drive bay cover back onto the unused drive bay.

Your computer now has a built-in IrDA port !


click on the picture to enlarge


IR Module Application note #2
Install IR module to a case's front bezel

This PC case comes with a stylish plastic oval-shaped IR window designed to house an infrared module.



click on the picture to enlarge


  Remove the front panel from the case and secure the IR Module to the back of the IR window.

Your computer now has a built-in IrDA port !


click on the picture to enlarge


IR Module Application note #3
Install IR module onto an expansion slot backplate for either a PC or 19" rackmount server.


There is no hole to drill.  This backplate used here was an expansion backplate for an old IDE card.  The original COM port cable is easily removed from the plate by using a plier and a screw driver.  Secure an IR module to the backplate using the left-over screws, nuts, and standoffs from the accessory kits that came with a case.


click on the picture to enlarge


Attach the included IR Cable to the IR Module.  Then secure the assembly to an open slot.

Your PC or 19" rackmount server now has a built-in IrDA port !


click on the picture to enlarge




IRM-03AUS$12.99
